Mjerač magle i spektrofotometar (prolaznost)

Broj proizvoda: HM-700

Opis
Preuzimanje

It is designed for color, haze, spectral transmittance and total transmittance measurement of transparent and translucent materials such as plastic sheets, films, glass, LCD panel and touch screen, etc.

Uvod proizvoda:
1. Comprehensive Transmission Color Parameters
Color and haze meter hascomprehensive color parameters, which can measure dozens of color parameters such as Lab, yellowness index, whiteness index, Gardner, Pt-Co / APHA / Hazen colors.

2. Comply with ASTM and ISO standards
The clarity and haze meter complies with both ASTM and ISO measurement standards. It can meet the following measurement standards ASTM D1003 / D1044, ISO13468 / ISO14782, JIS K7105, JIS K7361, JIS K7163 and other international standards.

3. Different Light Sources for Different Measurement Requirements
Color and haze meter provides A, C and D65 measurement light source selection, and 24 types of measurement light source for color measurement.

4. Compensation Measurement to Make Test Result More Accurate
It can realize the compensation measurement of transmittance and provide more accurate transmittance test results.

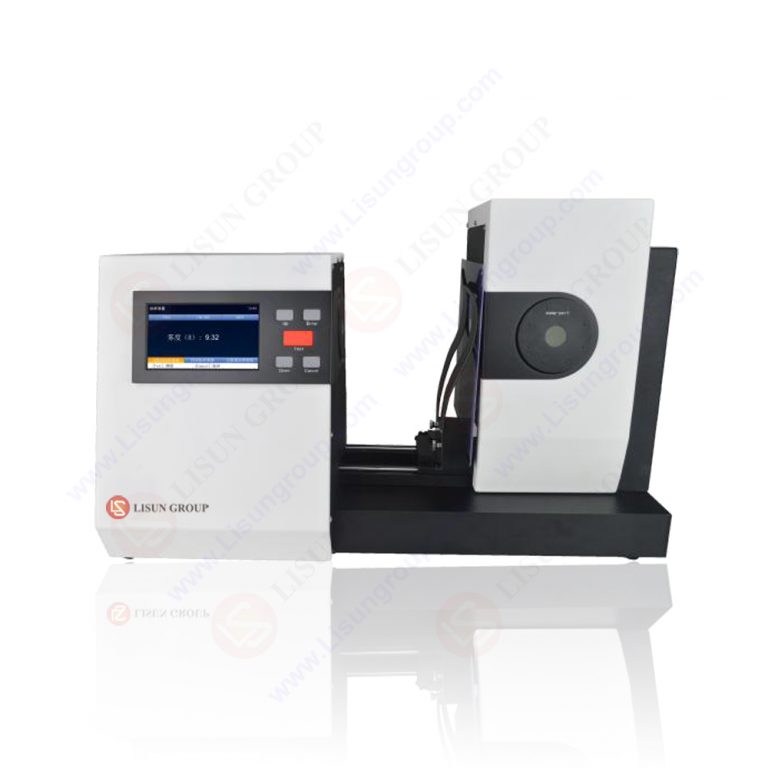

HM 700 mjerenje izmaglice i prijenosa 4

5. Haze QC software as Standard Accessory
Provide powerful haze, color, and transmittance measurement and analysissoftware, which can operate on a computer to generate and print test reports.

6. Seven-inch Android Touch Screen for Better Testing Experience
Android operate system and touch screen for more convenient operation and better user experience.

7. Open Sample Measurement Area, Sample can be Measured Horizontally or Vertically
Open samplemeasurement area, which is no limit on sample size, you can perform horizontal or vertical measurement according to different samples.

8. Abundant Measurement Fixtures
Meet the measurement needs of different forms of sheet and liquid samples

Tehnički parametri

Model	HM-700
Izvor svjetlosti	Haze / Transmittance: CIE-A、CIE-C、CIE-D65 Chromaticity index: A, C, D50, D55, D65, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12, CMF,U30,DLF,NBF,TL83,TL84
Standardi	ASTM D1003/D1044,ISO13468/ISO14782,JIS K 7105,JIS K 7361,JIS K 7136,GB/T 2410-08,CIE No.15,ISO 7724/1,ASTM E1164,DIN 5033 Teil7,JIS Z8722 Condition c standard
Parametri	Haze (HAZE),Transmittance (T),Spectral transmittance, CIE Lab,LCh,CIE Luv,XYZ,Yxy, , Hunter Lab MunsellMI,CMYK,Whiteness WI(ASTM E313-00,ASTM E313-73, CIE/ISO, Hunter, Taube Berger Stensby), Yellow Index YI(ASTM D1925, ASTM E313-00, ASTM E313-73), Tint(ASTM E313-00), Heterochromatic index Milm, APHA, Pt-Co(Index of platinum cobalt),Gardner, Color difference (ΔEab,ΔECH,ΔEuv,ΔEcmc(2:1),ΔEcmc(1:1),ΔE94,ΔE*00)
Mjerno područje	0-100% (Haze, transmittance)
Spektralni odgovor	CIE The spectrum functionY/V(λ)
Raspon valne duljine	400-700nm
Interval valne duljine	10nm
Geometrija	0 / d
Illumination Area and Aperture	16.5mm / 21mm
Rezolucija	0.01 jedinica
Ponovljivost	haze＜10%, repeatability≤0.05; haze≥10%, repeatability≤0.1%; Transmittance≤0.1%
Veličina uzorka	thickness≤145mm
prikaz	7 InchesTouch Screen
Pohranu podataka	20,000 vrijednosti
Sučelje	USB
Vlast	110V / 220V / 240V
Rad Temperatura	0~45℃, Relative humidity 80% or below (at 35 ° C), no condensation
Temperatura skladištenja	-25 ℃ ~ 55℃, relative humidity 80% or below (at 35 ℃), no condensation
Veličina instrumenta	598mm * 247mm * 366mm (dužina širina Visina)
standard	PC management software (Color QC)
Izborni	Measuring Fixture, Haze Standards, Transmittance Standards, 5mm / 7mm / 10mm Apertures, 40 * 10 Glass Cell
